BME280 High Precision Arduino Sensor Module 1.2 V to 3.6 V Voltage For Atmospheric Pressure

High Precision Atmospheric Pressure Sensor Module GY-BME280-3.3

Description:

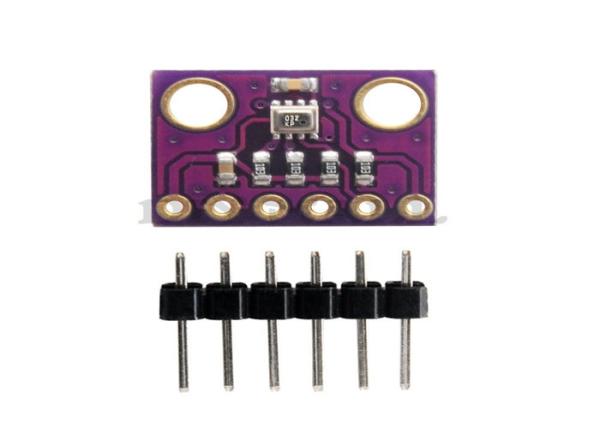

*ME-BME280 is a Breakout Board with a Bosch Sensortec ME280 temperature, humidity & pressure sensor.
*Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.
*The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.
Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)

Specification:

Supply voltage VDD main supply voltage range	1.71 V to 3.6 V
VDDIO interface voltage range	1.2 V to 3.6 V
Operating temperature range	-40~+85 °C
Current consumption	1.8 uA @ 1 Hz humidity and temperature; 2.8 uA @ 1 Hz pressure and temperature; 3.6 uA @ 1 Hz humidity, pressure and temperature; 0.1 uA in sleep mode.

Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement( Order > 3000PCS)

Circuit Diagram:

BME280 High Precision Arduino Sensor Module 1.2 V to 3.6 V Voltage For Atmospheric Pressure
