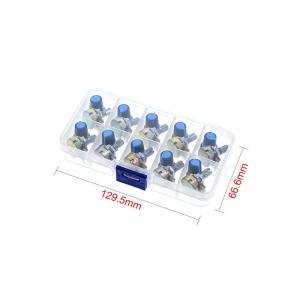

B1K 2K 5K 10K 20K 50K 100K 500K 1M 15mm Taper WH148 Potentiometer Kit Rotary Potentiometer Resistor Set

Description:

Electrical Characteristics

1. Temp Range:-10℃~100℃

2. Rated Power:Curve B:0.125W;Other curve B:0.053W

3. Max Operation Voltage:Curve B:200V;Other curve B:150V

4. Resistance Range:1KΩ~2MΩ

5. Allow Desistance Tolerance:±20%(1MΩ or more30%)

6. Rotational Noise:≤47mV

7. Resistance Law:A,B,C

8. Dielectric:AC500V,1 minute

9. Insulation Resistance:More than 100MΩ at DC500V

Specification:
